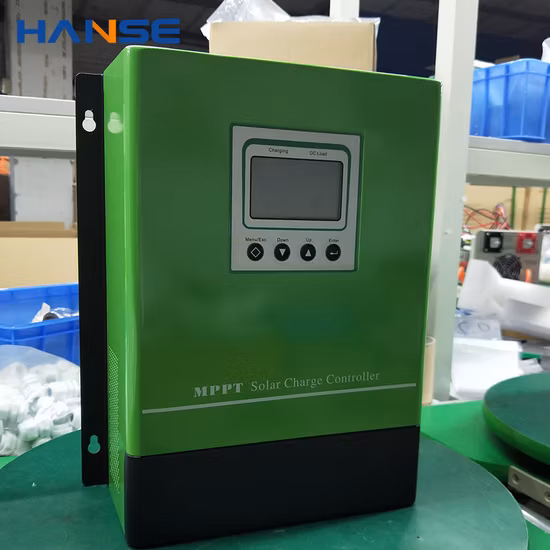

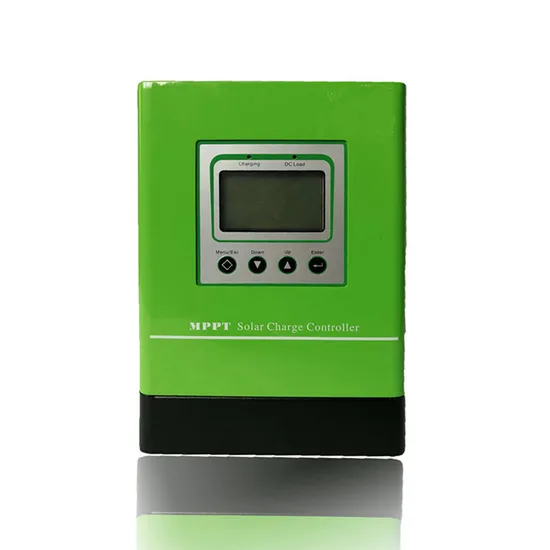

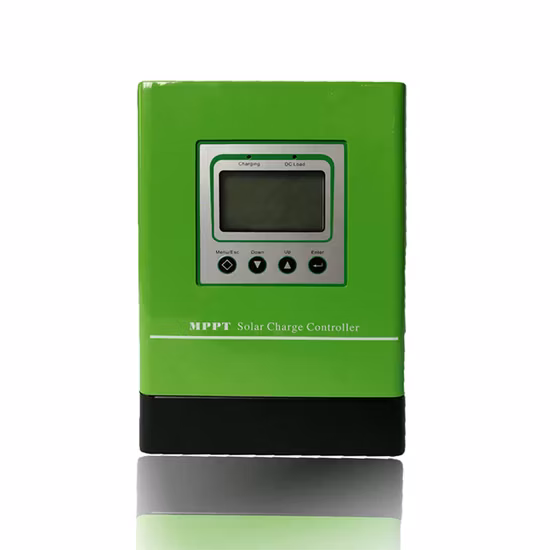

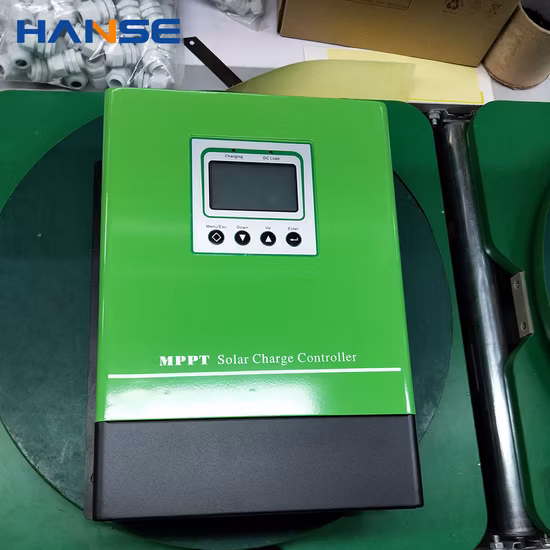

24V/48V 40A/80A 100A MPPT Solar Charge Controller for Solar Power System

Products

24V/48V 40A/80A 100A MPPT Solar Charge Controller for Solar Power System

24V/48V 40A/80A 100A MPPT Solar Charge Controller for Solar Power System

Q1:May I take some samples to test before placing the bulk order ? A1: Yes, You can take some sample to test and welcome

Send your inquiry

DESCRIPTION

Basic Info
Model NO. MPPT
After-sales Service Free Parts
Warranty 1 Year
Condition New
Certification ISO, CE
Application Collector Controller, Solar System Controller, Charger Controller, Lighting Controller, Wind Controller, Solar Working Station, Voltage Controller
Rated Voltage 12V/24V/28V
Transport Package Wood Carton
Origin China
Production Capacity 9000 Per Monh
Product Description

odel

40A

50 A

60 A

80 A

100 A

Charging Mode

MPPT Automatic Maximum Power Point Tracking

Charging Method

Three stages : Constant Current ( MPPT), Balanced Charging,
Floating Charge

System Type

12 V/ 24 V/ 48 V

Automatic Identification/ Manual Setting


System
Identification
Voltage Range

12 V System

DC 9 V- DC 15 V

24 V System

DC 18 V- DC 30 V

48 V System

DC 36 V- DC 60 V

Soft Start Time

12 V/ 24 V/ 48 V

≤10 s

Dynamic Response Recovery Time

12 V/ 24 V/ 48 V

≤500 us

Static Power

12 V/ 24 V/ 48 V

≤2 W

Machine Efficiency

12 V/ 24 V/ 48 V

≥96 . 5 %

PV Module Utilization

12 V/ 24 V/ 48 V

≤99 . 97 %

Input Characteristics


MPPT Operating
Voltage Range

12 V System

DC 18 V- DC 150 V

24 V System

DC 34 V- DC 150 V

48 V System

DC 65 V- DC 150 V


Input Low Voltage
Protection Point

12 V System

DC 16 V

24 V System

DC 30 V

48 V System

DC 60 V


Input Low Voltage
Recovery Point

12 V System

DC 18 V

24 V System

DC 34 V

48 V System

DC 65 V

Limit Input Voltage

12 V/ 24 V/ 48 V

DC 160 V

Overvoltage Protection

12 V/ 24 V/ 48 V

DC 150 V

Overvoltage Recovery

12 V/ 24 V/ 48 V

DC 145 V

Maximum Solar
Panel Input Power

12 V System

420W

570W

700W

900W

1100W

24 V System

840W

1130W

1400W

1700W

2200W

48 V System

1650W

2270W

2800W

3400W

4400W

Output Characteristics

Optional Battery Type (Default is lead - acid maintenance- free
battery)

12 V/ 24 V/ 48 V

Lead- acid maintenance- free Battery, G e l Battery, Liquid Battery, Lithium Battery ( Can also be customized for other types of
battery)

24V/48V 40A/80A 100A MPPT Solar Charge Controller for Solar Power System

24V/48V 40A/80A 100A MPPT Solar Charge Controller for Solar Power System

24V/48V 40A/80A 100A MPPT Solar Charge Controller for Solar Power System

Q1:May I take some samples to test before placing the bulk order ?

A1: Yes, You can take some sample to test and welcome to visit our factory

Q2:Do you support Ready To Ship ,OEM&ODM?

A2:Yes, we are a powerful factory, one piece can also be shipped, and we can also customize products for you,the MOQ is much lower than many factories. Q3. What is our advantage ?

A3.We have professional R&D team, can customized the products you want. We have 10,000 square meters and more than 100 staffs. Q4. What is the Waranty of the Controller and How can we guarantee quality?

A4.Our Product have 1 Years Warranty ,Always a pre-production sample before mass production; All of our products have passed certification of CE,CCC, and RoHS. Always final Inspection before packing Q5.What can you buy from us?
A5.Solar inverter, solar off grid hybrid solar inverter, Solar pumping inverter, Pure sine wave inverter, Modified sine wave inverter, MPPT/PWM solar controller, battery charger, Solar lighting system, power converter
Q6. How to select a suitable products?

A6.Tell us your demand, we can recommend a suitable inverter to you.

Q7:What is the delivery time ?

A7:Normally 5 days for sample ,20days for Bulk order
