Products

DESCRIPTION

Basic Info

Model NO.	HT30U
Condition	New
Rated Voltage	12/24V
Product Name	Ht30u Series PWM Solar Charge Controller
Transport Package	Safety Packing
Specification	535*425*200mm
Trademark	KEMAPOWER
Origin	Foshan, China
HS Code	9032899090
Production Capacity	50000PCS/Year

Product Description

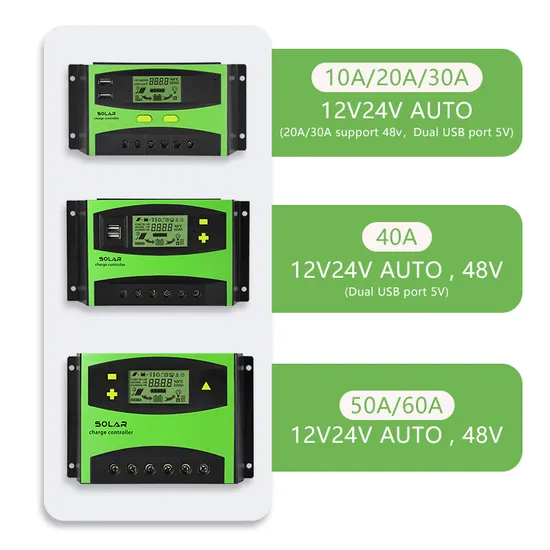

HT30U Series10A 20A 30A PWM Solar Charge Controller



KEY FEATURES

* PWM solar charge controller 12/24V 10/20/30A
* LED Display ,with 2 USB charger

* LED Indicators for Charing,Load, fault and protection status* Bigger terminal , more safety and easy to installation* Selectable Battery type,4 stage Charge,adjustable charge parameter* Temperature compensation Charge and clock function* Load working mode ,Normal,Light Control,Light and Double time control* Protection for over charge, over discharge,overload, and short circuit,reverse polarity

* Preset charging parameters for three battery types*Communication with computer by RJ45 option

Technical Specifications

ITEM	MODEL	HT30U-1024	HT30U-2024	HT30U-3024
Rated charge current		10A	20A	30A
Rated load current		10A	20A	30A
System voltage		12/24V AUTO work
Protection	Over load	≥120%, 60s;≥150%,10s,≥180%,0.2s
	Shortcircuit	Yes
	Over voltage	Yes
	Low Voltage Disconnection(LVD)	10.7Vfor 12VDC, 21.4V for 24VDC
	Low Voltage Reconnection(LVR)	12.6V for12VDC,25.2V for 24VDC
	Reverse polarity	protection for solar panel ,battery and DC load.
	Reverse current	Yes.at night
Static current		≤12.5mA ( USB is OFF )
Voltage drop	Loop Voltage Drop	Charging:<0.22V,Discharging:<0.12V
Charging voltage	Float charge	13.8V for 12VDC,27.6Vfor 24VDC
	Equalizing charging	14.6Vfor 12VDC,29.2V for 24VDC
Open Circuit Voltage of solar panel		12VDC≤50V; 24VDC≤100V
Charging control mode		PWM
LED Display		LED for Charing,Load, fault and protection status
USB Charge		2*5V1.0A	2*5V1.0A	2*5V1.0A
Running temperature		-20 ~ +55 °C
Storage temperature		-30 ~ +80 °C
Humidity requirements		10% -90%, no condensation
Installation cable area		≤6mm2	≤6mm2	≤16mm2
Protection class		IP30
Case material		ABS
Product size(mm)		188*95*46.5
Product Weight(kg)		0.34	0.34	0.345
Carton size(mm)		535*425*200
Carton weight(kg)		15KG / 30PCS
Notes		Model HT**U: ,U-5V/1AUSB,24--12V/24VDC
