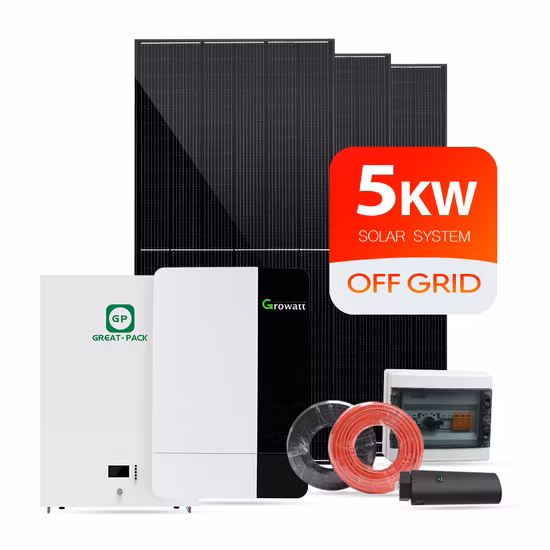

Gp Home Solar Power System off Grid 5kw Solar System
Overview Package size per unit product 350.00cm * 150.00cm * 150.00cm Gross weight per unit product 750.000kg Product De
Send your inquiryDESCRIPTION
Basic Info
Model NO. | Off-GP5KW |
Certification | ISO, CE |
Application | Home, Industrial, Commercial |
Specification | Normal, 2CBM |
System Type | off Grid |
Generating Capacity | 20kwh/Day |
AC Output Voltage | 110V or 230V 1phase |
Output Frequency | 50/60Hz |
Certificate | CE, RoHS, TUV, IEC |
Monitoring | RS485/RS232/WiFi |
Controller Type | MPPT/PWM |
Battery Type | AGM/Gel/Lithium Battery |
Transport Package | Wooden Box/Pallet/Carton Box |
Trademark | Great Pack |
Origin | Anhui, China |
HS Code | 8504402000 |
Production Capacity | 200 Pieces/Day |
Packaging & Delivery
Package size per unit product 350.00cm * 150.00cm * 150.00cm Gross weight per unit product 750.000kgProduct Description
GP Home Solar Power System off Grid 5kw Solar System
5KW/10KW/15KW/20KW Off Grid Solar System Configuration | |||||
Parts | Specification | Quantity | |||
5KW | 10KW | 15KW | 20KW | ||

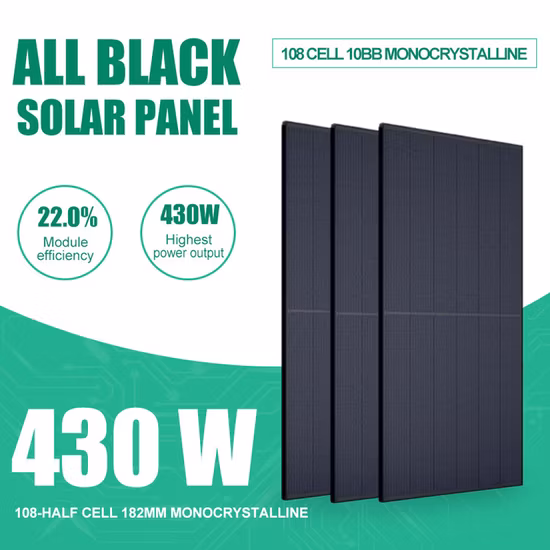

Solar panel | 430W Mono Half cell | 12 pcs | 24 pcs | 36 pcs | 48 pcs |

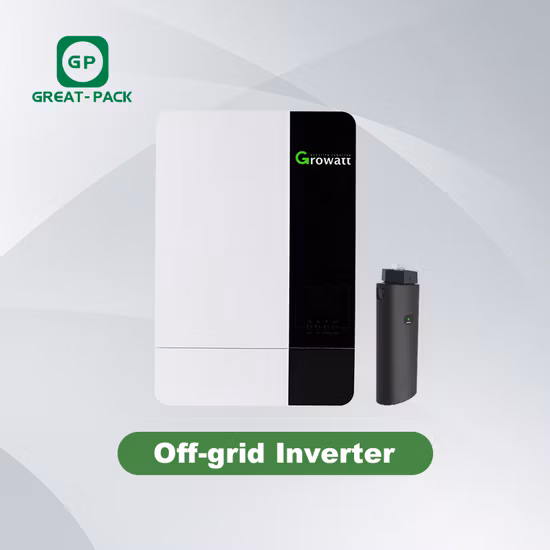

Off grid inverter | 5KW, 220VAC 50Hz, 48V100A MPPT | 1 pcs | 2 pcs | 3 pcs | 4 pcs |
Wifi | optional | 1 pcs | 1 pcs | 1 pcs | 1 pcs |
LiFePO4 Battery | Powerwall/Rack-mounted, 48V 5KWH/10KWH, optional | 1 pcs | 1 pcs | 1 pcs | 1 pcs |
PV combiner box | 2 input 1 output | 1 pcs | 2 pcs | 3 pcs | 4 pcs |
Mounting Bracket | Roof or Ground Installation | 1 set | 1 set | 1 set | 1 set |
PV cables | 4mm² | 100 meters | 200 meters | 300 meters | 400 meters |
MC4 connector | Male + Female | 5 pairs | 10 pairs | 15 pairs | 20 pairs |
Installation tools | optional | 1 set | 1 set | 1 set | 1 set |
-3 years warranty-Integrated MPPT charge controller-Work with battery or without battery-Maximum PV input voltage up to 450VDC-Configurable grid or solar input priority-Support parallel operation for capacity expansion up to 30kW-Optional WIFI/ GPRS remote monitoringLIFEPO4 BATTERY (Powerwall type)
-10 years warranty-8000 cycles work life-5kwh and 10kwh capacity optional-Support parallel connection up to 16 pcs-Built-in battery management system-Wide compatible with inverters MOUNTING BRACKET SYSTEM(Including all parts)
-15 years warranty-Roof or ground installation optional-Aluminum alloy, galvanized steel material optional-Resistance to 60m/s wind speed and 1.4kN/m² snow pressure Detailed Photos
Our packaging
Our factory
ANHUI GP NEW ENERGY CO., LTD
We, Anhui GP New Energy (Great Pack) focus on LiFePO4, Li-polymer, Li-ion rechargeable batteries, solar energy battery, are the leading Lifepo4 battery supplier in China, who committed to the R&D, design, and innovation of lithium batteries to supply Green & Clean energy to our daily modern lives!Our team has over 8 years of experience in the lithium battery field, and supply One Stop Power Solution suggestions to help you to save time & capital and achieve advanced technologies and excellent OEM/ODM service.
Quality is life, Great Pack is committed to supplying high-quality batteries and the best service to our clients all over the world. Our battery has passed CE, UN38.3, RoHS, MSDS certificates. We are committed to becoming a leading solution provider to go global in the Solar lithium battery industry.
Our workshop
Our Certifications
Won the authoritative certification from the strict requirements, so that consumers can reset assured to buy and use
Q1: Can the product be shipped to my area?A1: We export to most countries/regions (Centre/South America, EMEA, SEA, SSA, AU). We will check and confirm for you after you provide the region.Q2: What about the lead time?A2: 10 Working days for 200kw requirements.
Q3: How can I make a payment?A3: 100% TT, or we can accept 30% TT in advance and 70% TT upon goods being ready before shipment.
